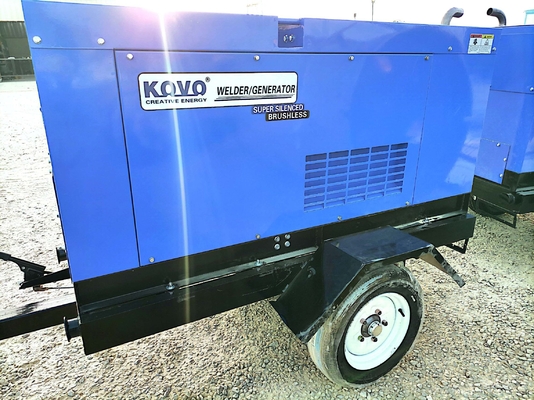

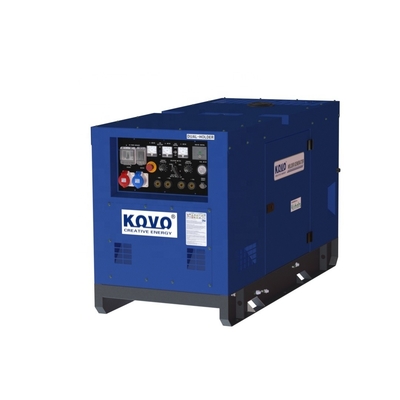

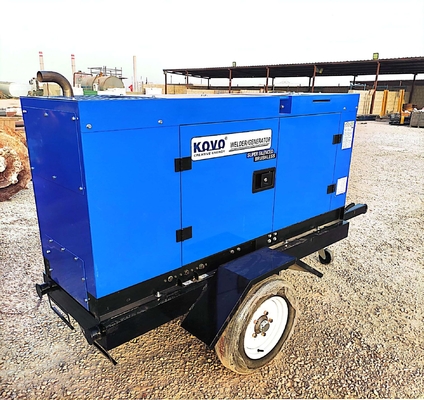

GENERATOR AND WELDER SIMUTANOUSLY
400A & 15KVA
DC Stick (SMAW)
DC TIG (GTAW)
DC MIG (GMAW)
Flux cored (FCAW)
400A & 15KVA
DC Stick (SMAW)
DC TIG (GTAW)
DC MIG (GMAW)
Flux cored (FCAW)
|
Product Details:
|
| Rated Input Voltage: | 220V±15% | Rated Duty Cycle @40°C: | 80% |
|---|---|---|---|
| Max. Load Power Capacity: | 40kva | Rated Output Voltage: | 85 V |
| Rated Output Current: | 500 | Welding Current/Voltage Range: | 30-400A |
| Condition: | New | Pulse Frequency: | 885 |
| Motor Type: | DC MOTOR | Dimensions: | 1500*700*700MM |
| Use: | PIPELINE WELDING | Weight (KG): | 700 KG |
| Warranty: | 1 Year | Key Selling Points: | WELDER + GENERATOR |
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Feature: | Multifunction |
| Welding Machine Type: | ENGINE DRIVEN WELDER | Function: | Welder + Generator |
| Port: | TIANJIN |
|
Generator
|
|
|
|
|
|
|
DC Welder (CC MODE)
|
|
|
|
|
|
|
Rated Output
|
KW
|
14.4
|
|
|
|
|
Rated Current
|
A
|
400
|
|
|
|
|
Rated Voltage
|
V
|
36
|
|
|
|
|
Current Range (Single)
|
A
|
60-400
|
|
|
|
|
Current Range(Dual)
|
A
|
30-220
|
|
|
|
|
Open-circuit Voltage
|
V
|
80
|
|
|
|
|
Duty Cycle
|
%
|
90
|
|
|
|
|
Rated speed
|
rpm
|
1500
|
|
|
|
|
Type
|
-
|
Rectified DC output type
|
|
|
|
|
Applicable Electrode
|
mm
|
2.0-6.0
|
|
|
|
|
DC Welder (CV MODE)
|
|
|
|
|
|
|
Voltage Range
|
V
|
|
|
|
|
|
Rated Current
|
A
|
|
|
|
|
|
Aux. Power
|
|
|
|
|
|
|
Rated Output
|
KVA
|
20
|
|
|
|
|
Rated Voltage
|
ACV
|
120/220/380/415
|
|
|
|
|
Phase
|
-
|
3-phase/4 wires
|
|
|
|
|
Power Factor
|
%
|
80
|
|
|
|
|
Frequency
|
Hz
|
50
|
|
|
|
|
Rated Speed
|
rpm/min
|
1500
|
|
|
|
|
Excitation
|
-
|
Brushless
|
|
|
|
|
Driven
|
-
|
Direct Coupling
|
|
|
|
|
Engine
|
|
|
|
|
|
|
Model
|
-
|
ISUZU ENGINE
|
|
|
|
|
Type
|
-
|
4-cycle, water-cooled diesel engine
|
|
|
|
|
Cylinder arrangement
|
-
|
4-L
|
|
|
|
|
Total displacement
|
cc
|
2270
|
|
|
|
|
Rated Output
|
KW
|
19.0
|
|
|
|
|
Speed
|
rpm
|
1500
|
|
|
|
|
Cooling System
|
-
|
Water-cooled by radiator type
|
|
|
|
|
Driven
|
-
|
Direct Coupling
|
|
|
|
|
Fuel
|
Light diesel oil
|
|
|
|
|
|
Start System
|
-
|
Electric motor(12V)
|
|
|
|
|
Fuel Tank Capacity
|
L
|
50
|
|
|
|
|
Oil Capacity
|
L
|
7.4
|
|
|
|
|
Battery Capacity
|
-
|
12V- 95D31
|
|
|
|
|
Dimension (L×W×H)
|
mm
|
1650×650×905
|
|
|
|
|
Net Dry Mass
|
Kg
|
750
|
|
|
|
|
Operating Mass
|
Kg
|
800
|
|
|
|
